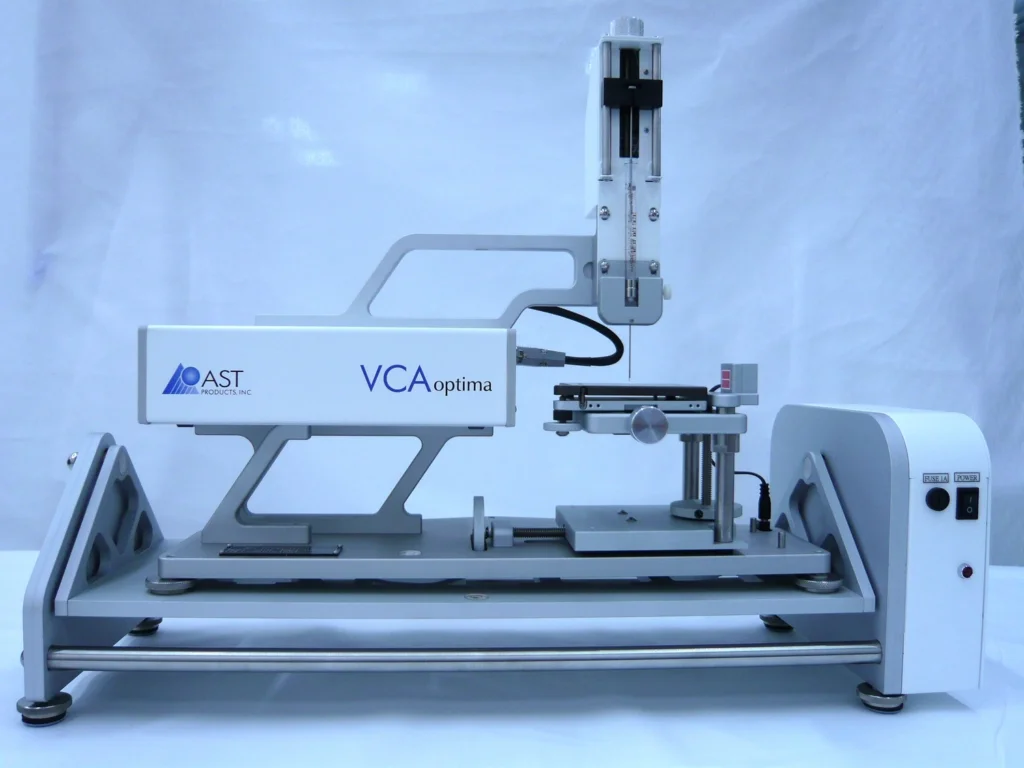

Video Contact Angle Auto syringe Surface energy Surface tension Software 0-1800, ± 0.50 High resolution Video camera
Automatically captures the droplet image and calculates the contact angle measurement by Sessile Drop method. Both the contact angle tangent line and computer generated drop shape curve fit are displayed on the video image. Graphical or numerical results can be printed, documented or exported to other programs.
Measuring range: 0-180 degree Repeatability: 1° Accuracy: 0.5° Magnification: 35:1 (high mag until 51:1) Sample/specimen stage sizes: 3.5” x 3.5” max / W6.5” x L9” x H2.5” Dosing: 150-500 Droplets Input voltage: 110V/50 or 60 Hz
High-resolution video camera with powerful lens system for fine image focus Solid state lighting for sharper and brighter images High-end PC is standard with high-performance video board for advanced image capture and fast results Three-dimensional adjustable stage for accurate sample position
