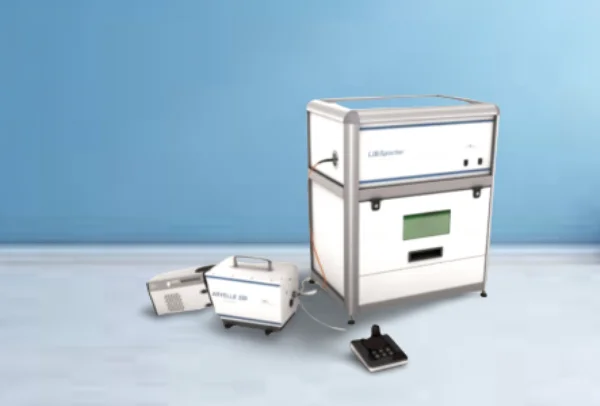

LTB Germany LIBS

LIBS 200-800nm CCD/ICCD Echelle Grating Resolution 25-100pm, 3pm or sub pm 1064nm, 100mJ or 50mJ Chamber with large collection optics Elemental identification

SpectroscopyContact Us for Inquiry

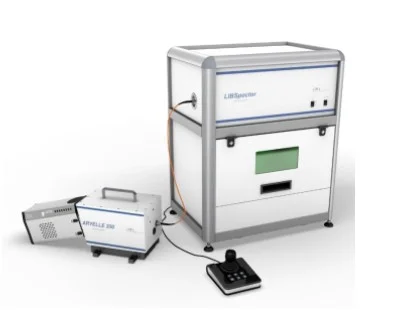

ICCD Spectrometer – Aryelle 200

Wavelength range 205 – 800 nm, Typical Spectral resolving power 8000, Spectral resolution 25.6 pm– 100 pm Minimum Spectral resolving power 7500, Focal length 200 mm Aperture f/10, Slit width 40 µm. Detector ICCD Andor iStar 334-18F-03, 1024 x 1024 Pixel, 13 µm x 13µm Gate width 5 ns Dynamic range 15 bit, AD conversion 16 bit, Light coupling Fiber SMA, Wavelength calibration Spectral lamp Hg Wavelength accuracy better than spectral resolution/4 Dimensions without detector (LxWxH) (260 x 160 x 185) mm, Weight without detector 7.3 kg,
